Solar Inverters: A Comprehensive Guide with Technical Diagrams
Solar inverters are the intelligent heart of every solar power system, serving as the critical bridge between the direct current (DC) electricity generated by solar panels and the alternating current (AC) electricity required by household appliances and the electrical grid. Understanding how solar inverters work, their types, and their technical specifications is essential for anyone considering or working with solar energy systems.[1][2]
What is a Solar Inverter ?
A solar inverter, also known as a photovoltaic (PV) inverter, is a specialized power electronic device that converts the variable DC output from solar panels into usable AC electricity. When sunlight strikes solar panels, they generate DC electricity through the photovoltaic effect. This DC power must be transformed into AC power—typically at 120V/240V in residential applications—to operate standard household appliances and integrate with the utility grid.[1][3][4]
Diagram showing the connections of solar panels, inverter, battery, grid, and household loads in a solar power system.
How Solar Inverters Work
The operation of solar inverters involves sophisticated electronics and a precise conversion process that ensures efficient and safe power transformation.[1][2]
The Conversion Process
Solar inverters utilize solid-state components rather than mechanical parts, employing power semiconductors such as Insulated Gate Bipolar Transistors (IGBTs), transistors, and diodes to perform the conversion. The fundamental working principle involves these key steps:[5][2]
DC Input Reception: The inverter receives DC electricity from solar panels, typically ranging between 250V to 600V depending on the system configuration.[5]
High-Frequency Switching: Advanced power transistors rapidly switch the DC current on and off at very high frequencies, creating a pulsed signal. This binary switching forms the foundation of the AC conversion process.[2]
Pulse Width Modulation (PWM): The inverter employs PWM technology to modulate the width of electrical pulses, creating an average voltage that mimics an AC sine wave. By adjusting the duration and frequency of these pulses, the inverter generates a waveform that closely approximates true alternating current.[6]
Filtering and Smoothing: The pulsed output passes through filter circuits containing inductors and capacitors that remove high-frequency components and smooth the waveform into a clean sine wave.[1][6]
Output Regulation: Control circuits continuously monitor and adjust the output voltage and frequency to match grid standards—typically 50Hz or 60Hz depending on location—ensuring stable, high-quality power delivery.[1][5]

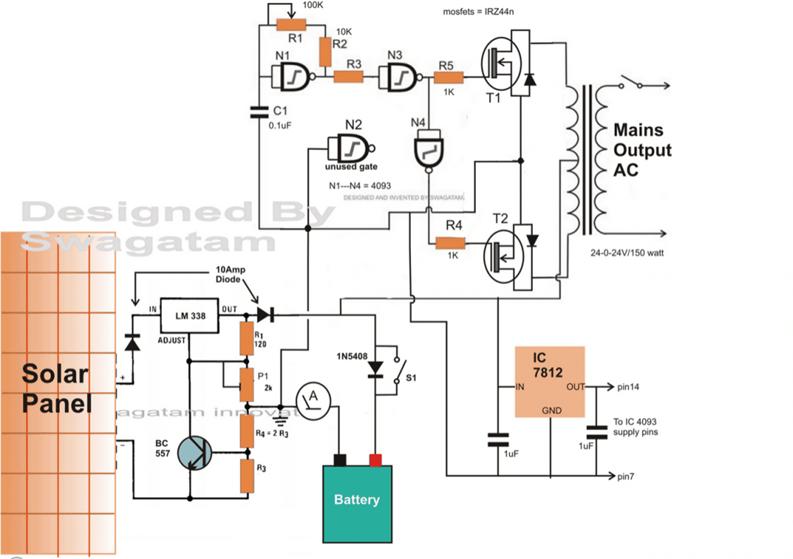

Circuit diagram of a solar inverter showing components from solar panel input to AC mains output via MOSFETs and transformer.
Core Components of Solar Inverters
Understanding the internal architecture of solar inverters helps appreciate their complexity and functionality.[1][7][8]
Essential Components
DC Input Section: Receives and conditions the direct current from solar panels, including DC disconnect switches that control current flow and ensure stability.[1][7]
Power Conversion Stage: Contains IGBTs or MOSFETs (Metal-Oxide-Semiconductor Field-Effect Transistors) arranged in H-bridge configurations that perform the actual DC-to-AC conversion. These switching devices are the workhorses of the inverter.[7][5][8]
Control Circuitry: Includes microcontrollers that execute sophisticated algorithms, most notably Maximum Power Point Tracking (MPPT), which optimizes power extraction from solar panels under varying conditions.[9][10]
Filter Components: Capacitors and resistors that stabilize voltage, filter electrical signals, and ensure clean power output.[8][7]
Output Transformer: Adjusts voltage and current levels to match grid requirements or load demands, stepping up voltage from the DC input level to the required AC output level.[1][7]
Protection Systems: Multiple safety features including anti-islanding protection, overcurrent protection, surge protection, and thermal management systems.[11][12]

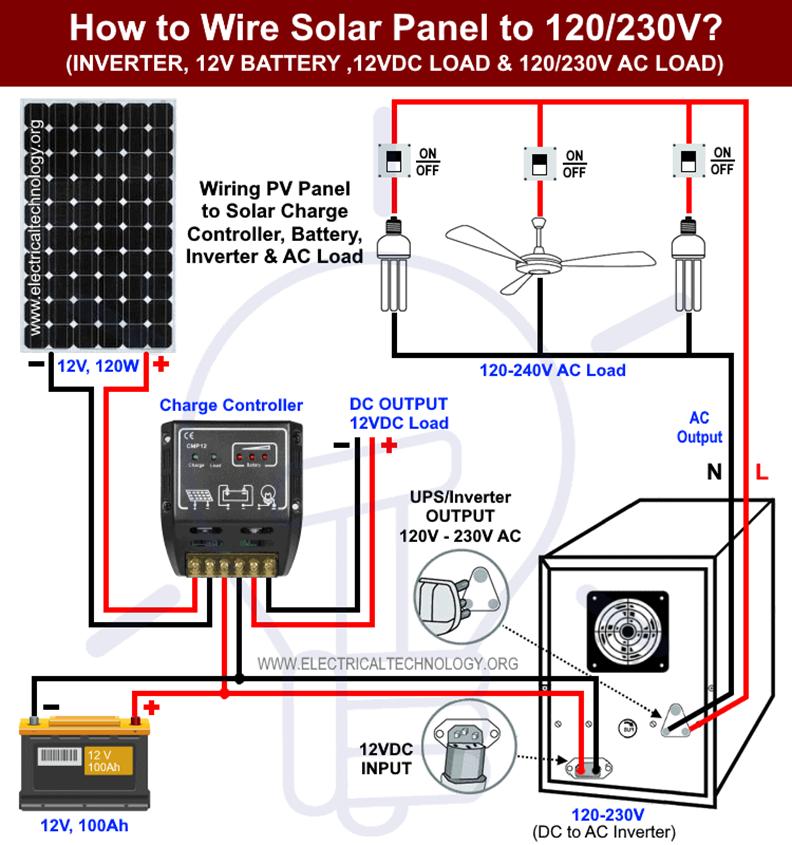

Wiring diagram for connecting a solar panel, charge controller, battery, and inverter to power 12V DC and 120-230V AC loads.
Types of Solar Inverters
Solar inverters come in several distinct configurations, each suited to different applications and system requirements.[1][3][13]
String Inverters
String inverters are the most traditional and widely used type, connecting multiple solar panels in series—like lights on a string—before converting their combined DC output to AC electricity at one central location.[1][14][15]
Advantages:
- Lower upfront cost compared to other inverter types[15][16]
- Proven reliability with decades of field experience[16]
- Simple installation and straightforward troubleshooting[16]
- Ideal for installations with consistent, unshaded roof areas[15]
- Higher power capacity to handle larger solar arrays[13]
Disadvantages:
- The lowest-performing panel dictates output for the entire string—if one panel is shaded by 30%, the entire system operates at only 70% capacity[15]
- Limited flexibility for complex roof configurations[15]
- System-level monitoring only, without individual panel visibility[15]
- Shorter warranty periods, typically 10-12 years[17]
Microinverters
Microinverters represent a distributed approach, with small inverters installed directly on each solar panel, converting DC to AC at the source of generation.[1][3][15]
Advantages:

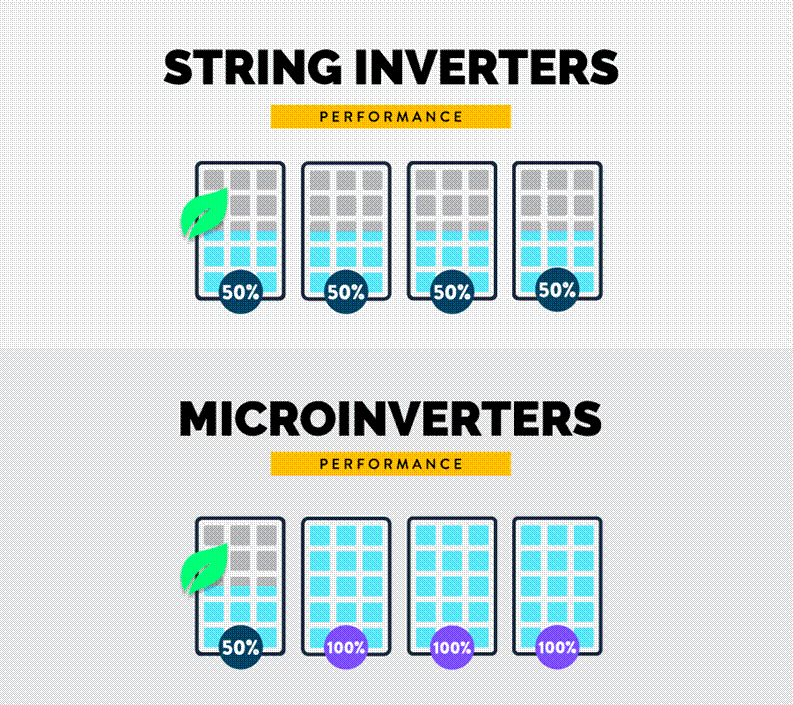

Comparison of performance between string inverters and microinverters showing the impact of shading on solar panel efficiency.
- Can increase system output by 5-25% in partially shaded conditions[17]
- Extended warranties, typically 25 years[17]
- Superior monitoring capabilities with individual panel performance tracking[15]
- Greater design flexibility for complex roof layouts and mixed panel orientations[17]
- Single panel failure doesn’t compromise the entire system[17]
Disadvantages:
- Higher initial investment, sometimes 20-30% more than string inverter systems[17]
- More components to monitor and potentially maintain[15]
- Installation complexity with multiple units[15]

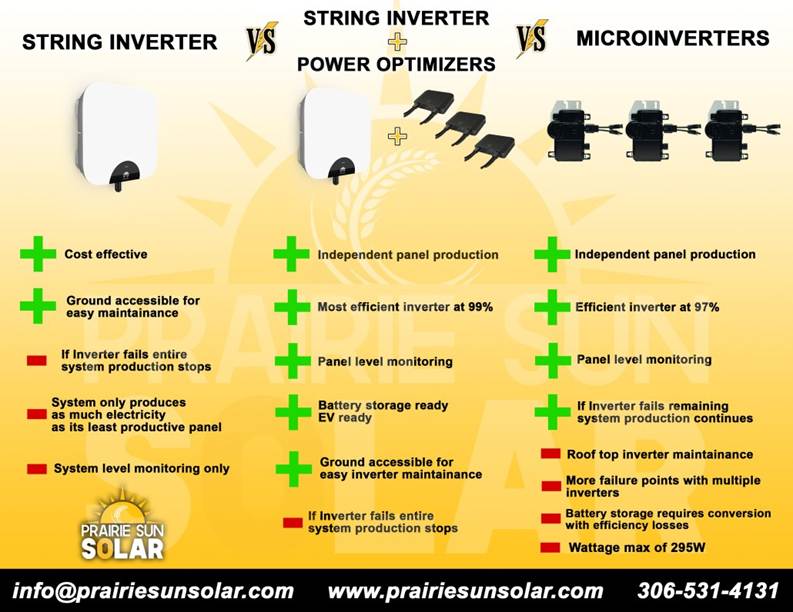

Comparison of string inverter, string inverter with power optimizers, and microinverters for solar power systems highlighting pros and cons.
Hybrid Inverters
Hybrid inverters combine the functionality of standard solar inverters with integrated battery management systems, representing the most versatile solution for modern solar installations.[18][19][20]
Key Features:
- Bidirectional power flow management between solar panels, batteries, and the grid[19][18]
- Intelligent energy storage management—storing excess solar energy for later use[20][18]
- Seamless automatic switching between solar, battery, and grid power sources[20]
- Backup power capability during grid outages (unlike standard grid-tied inverters)[21][20]
- Battery charging optimization through advanced algorithms[18][19]
- Multiple operating modes to maximize energy efficiency and cost savings[19]
Hybrid inverters enable greater energy independence by storing surplus solar production rather than exporting it to the grid at reduced compensation rates. This stored energy becomes available during evening hours, power outages, or periods of low solar generation.[18][20]
Grid-Tied vs Off-Grid Solar Inverters
The distinction between grid-tied and off-grid inverters fundamentally shapes system design and functionality.[21][22]
Grid-Tied Solar Inverters
Grid-tied inverters synchronize with the utility grid, operating in harmony with the public power infrastructure.[21][22]
Characteristics:
- Must precisely match grid voltage, frequency, and phase angle[22][21]
- Mandatory anti-islanding protection that automatically disconnects during grid outages[11][12]
- Lower system cost due to optional battery requirements[21][22]
- Net metering capability to sell excess generation back to utilities[22]
- Compliance with strict utility interconnection standards[12][11]
Limitations:
- System shuts down completely during power outages for safety reasons[23][21]
- Requires stable grid infrastructure—not suitable for remote locations[21]
- Subjects users to utility rate structures and policy changes[21]
Off-Grid Solar Inverters
Off-grid inverters operate independently without any connection to the electrical grid, creating a self-sufficient power system.[21][22]
Characteristics:
- Mandatory battery storage for continuous power supply[22][21]
- Complete energy independence from utility companies[21][22]
- Custom load management and power prioritization[21]
- Continued operation during grid failures[21]
- DC disconnect switches between battery bank and inverter for safety[22]
Considerations:
- Higher upfront investment due to battery requirements[22][21]
- More complex system design and load calculations[21]
- Moderate to high maintenance demands, especially battery care[22][21]
- System sizing must account for worst-case scenarios (consecutive cloudy days)[22]
Maximum Power Point Tracking (MPPT)
MPPT represents one of the most critical technologies in modern solar inverters, dramatically improving energy harvest efficiency.[10][24][25]
Understanding MPPT
Solar panels have a specific operating point—the maximum power point (MPP)—where they produce the most electrical power. This optimal point constantly shifts throughout the day based on sunlight intensity, temperature, shading conditions, and panel aging.[10][24][26]
MPPT algorithms continuously analyze the current-voltage (I-V) characteristic curve of solar panels and dynamically adjust the inverter’s operating parameters to keep the system at its maximum power point. This real-time optimization can improve energy yield by 15-25% compared to systems without MPPT.[24][27][10]
How MPPT Works
The MPPT controller measures the panel’s output voltage and current, calculates instantaneous power, and adjusts the electrical load to find the peak power point. Advanced algorithms, including Perturb and Observe and Incremental Conductance methods, continuously “hunt” for the optimal operating point.[24][25][28]
Modern MPPT implementations use machine learning and predictive modeling to improve tracking speed and accuracy, particularly in rapidly changing conditions such as cloud movement or partial shading scenarios.[10][24]
Benefits of MPPT:
- Adapts to changing environmental conditions in real-time[10]
- Minimizes mismatch losses between panels with different characteristics[24]
- Optimizes performance during partial shading events[10]
- Maximizes energy harvest across all weather conditions[25][10]
- Significantly improves return on investment through increased production[10]
Most modern residential and commercial solar inverters include integrated MPPT functionality, though the number of MPPT trackers varies—higher-end inverters may feature 2-4 independent MPPT channels for greater optimization flexibility.[29]
Solar Inverter Waveforms
The quality of the AC waveform produced by an inverter significantly impacts system performance and compatibility with electrical devices.[6][30][31]
Types of Output Waveforms
Square Wave: The simplest and least expensive waveform, jumping abruptly between positive and negative voltage levels. Square wave inverters are rarely used in solar applications due to poor power quality, high harmonic distortion, and incompatibility with most modern electronics.[30][31][32]
Modified Sine Wave: Also called modified square wave, this waveform approximates a sine wave through stepped voltage transitions with zero-voltage periods between positive and negative half-cycles. Modified sine wave inverters are less expensive but produce power with higher total harmonic distortion (THD), potentially causing buzzing in audio equipment, reduced efficiency in motors, and incompatibility with sensitive electronics.[6][31][30]
Pure Sine Wave: The highest quality waveform, producing smooth, continuous sinusoidal oscillations identical to utility grid power. Pure sine wave inverters are the gold standard for solar installations, with THD typically below 3%.[32][6][30]

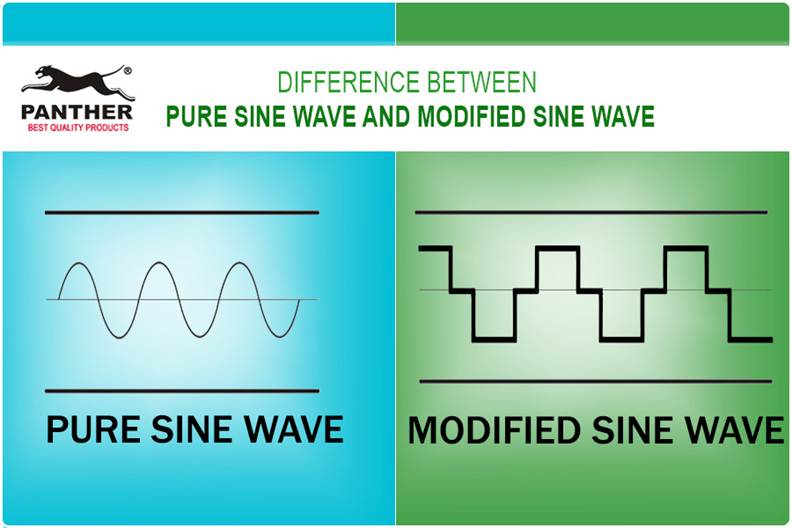

Comparison of pure sine wave and modified sine wave electrical waveforms

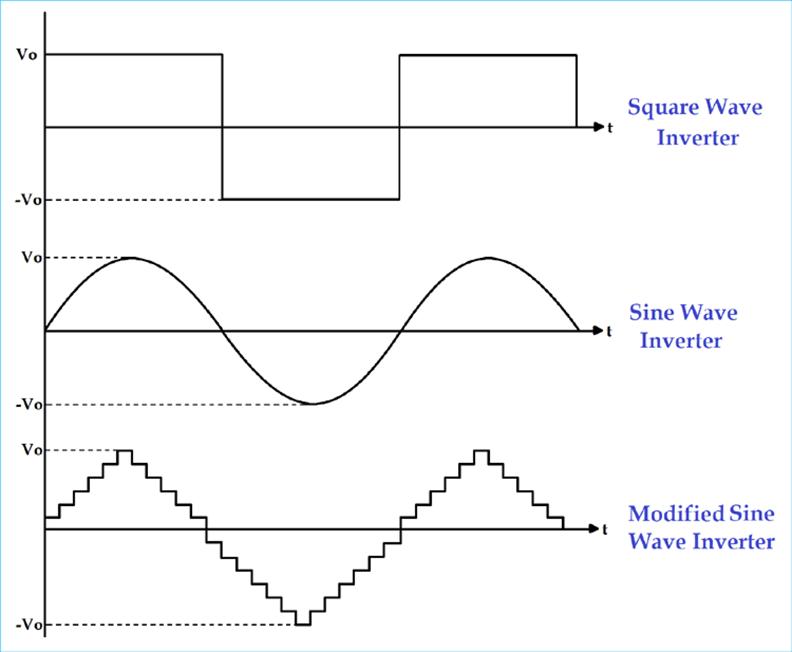

Comparison of square wave, sine wave, and modified sine wave outputs from different types of inverters.
Advantages of Pure Sine Wave Inverters
Pure sine wave inverters deliver superior performance across all metrics:[6][33]
- Equipment Compatibility: Works flawlessly with all AC devices, including sensitive electronics, medical equipment, variable-speed motors, and audio/video systems[2][30][33]
- Higher Efficiency: Motors and transformers operate more efficiently with clean sine wave power, reducing energy waste and heat generation[33]
- Reduced Interference: Minimal electromagnetic interference (EMI) and radio-frequency interference (RFI), preventing static, noise, and electronic glitches[33]
- Extended Equipment Lifespan: Clean power reduces stress on electrical components, extending the operational life of connected devices[33]
- Grid Compatibility: Essential for grid-tied systems that must match utility power quality standards[14][2]
Modern solar inverters almost universally produce pure sine wave output to ensure maximum compatibility and performance.[2][14][6]
Solar Inverter Efficiency
Inverter efficiency directly determines how much solar energy becomes usable electricity versus energy lost as heat during conversion.[34][35][36]
Understanding Efficiency Ratings
Inverter efficiency is calculated using a straightforward formula:[34]
Efficiency (%) = (AC Output Power ÷ DC Input Power) × 100
For example, if an inverter receives 1000W of DC power and outputs 970W of AC power, its efficiency is 97%. This means 3% of the energy is lost during conversion, primarily as heat.[34]
Efficiency Metrics
Manufacturers typically provide several efficiency ratings:[34][35]
Peak Efficiency: The highest efficiency achievable under ideal conditions, often 98% or higher for premium inverters.[34]
Weighted Efficiency: More realistic measures that account for variable real-world conditions:
- European Weighted Efficiency: A weighted average reflecting typical European climate and usage patterns[35][34]
- CEC Efficiency: California Energy Commission standard commonly used in the United States[35][34]
What Constitutes Good Efficiency?
Modern solar inverters should meet these benchmarks:[34]
| Efficiency Rating | Performance Level |
| Below 93% | Low (outdated technology) |
| 93-95% | Average |
| 95-97% | Good |
| Above 97% | Excellent (premium models)[34] |
Current high-end inverters achieve peak efficiencies of 98.5% or higher, with weighted efficiencies typically ranging from 95-97% under real-world operating conditions. Even small efficiency improvements translate to substantial energy savings over a system’s 25-year lifespan.[37][34]
Factors affecting real-world efficiency include operating temperature, load level, input voltage, and environmental conditions.[35][34]
Anti-Islanding Protection
Anti-islanding protection represents a critical safety feature in grid-tied solar inverters, preventing dangerous situations during utility power outages.[11][12][38]
What is Islanding?
Islanding occurs when a section of the electrical grid becomes isolated from the main power supply—typically during utility maintenance or outages—but continues to be energized by local solar generators. This creates a dangerous “island” of powered electrical lines that utility workers believe to be de-energized.[11][12]
How Anti-Islanding Works
Grid-tied inverters continuously monitor grid parameters including voltage, frequency, and phase angle. When the inverter detects abnormal conditions suggesting grid disconnection or instability, it immediately ceases power generation and disconnects from the grid within a fraction of a second.[11][12][38]
Detection Methods:
- Passive Detection: Monitors for voltage and frequency deviations beyond acceptable ranges[12][38]
- Active Detection: Employs techniques like Slip Mode Frequency Shift that deliberately perturb the grid to detect islanding conditions[38]
- Redundant Systems: Premium inverters include backup detection paths to ensure disconnection even if one method fails[12]
Importance of Anti-Islanding
Anti-islanding protection serves multiple critical functions:[11][12][39]
Worker Safety: Prevents electrocution of utility technicians working on what they believe are de-energized power lines during repairs or maintenance.[12][11]
Equipment Protection: Prevents damage to sensitive electronics and the inverter itself caused by wild voltage and frequency fluctuations in an islanded grid segment.[12]
Grid Stability: Ensures controlled reconnection protocols when grid power is restored, preventing sudden surges or destabilization.[12]
Regulatory Compliance: Mandatory under standards including IEEE 1547 and UL 1741 for all grid-tied solar installations.[38][11]
Modern solar inverters incorporate sophisticated anti-islanding algorithms that balance safety with minimal nuisance tripping, ensuring the system only disconnects during genuine grid issues.[38][12]
Solar Inverter Sizing and Installation
Proper sizing and installation are crucial for optimal system performance, safety, and longevity.[40][41][42]
Sizing Calculations
The most common method for sizing solar inverters is the ratio method, which accounts for the DC-to-AC ratio:[41][42][43]
DC-to-AC Ratio = Solar Panel Array DC Rating ÷ Inverter AC Rating
Industry best practice typically recommends a ratio between 1.1 and 1.25 (or 110-125%). This slight oversizing of panels relative to inverter capacity maximizes energy production during morning and evening hours while accepting minor “clipping” losses during peak solar conditions.[42][43][41]
Example: For a 5kW solar panel array:
- Minimum inverter size: 5kW ÷ 1.25 = 4kW
- Recommended inverter size: 5kW ÷ 1.2 = 4.17kW
- Maximum inverter size: 5kW ÷ 1.1 = 4.55kW[41]
A 1:0.8 ratio (or 1.25 DC-to-AC ratio) represents the sweet spot for minimizing losses while improving overall system efficiency.[43]
Installation Best Practices
Location Selection:[40][44][45]
- Install in cool, well-ventilated areas away from direct sunlight
- Maintain adequate clearance for heat dissipation (minimum 12 inches on all sides)
- Choose locations protected from weather exposure when possible
- Position at accessible height for maintenance and monitoring
- Avoid installation near heat sources or in confined spaces
- Securely mount inverter to wall using manufacturer-provided brackets
- Ensure proper DC input connections from solar array
- Connect AC output to main distribution panel using appropriate conduit
- Implement proper grounding according to electrical codes
- Use correctly sized wiring and overcurrent protection devices
- Label all connections clearly for safety and maintenance
Safety Considerations:[40][44]
- Install DC and AC disconnect switches for isolation during maintenance
- Verify all connections are tight to prevent arcing and heat buildup
- Ensure anti-islanding protection is properly configured
- Have a certified electrician inspect the complete installation
- Test the system under various load conditions before final commissioning
Solar Inverter Maintenance and Troubleshooting
Regular maintenance ensures optimal performance and extends inverter lifespan, while systematic troubleshooting quickly resolves issues.[46][47][48]
Maintenance Checklist
Regular Cleaning (Every 3-6 months):[47][48][49]
- Remove dust and debris from inverter housing and ventilation openings
- Ensure cooling fans operate properly without obstruction
- Wipe exterior surfaces with dry cloth (never use water on electronics)
- Keep surrounding area clear of obstructions affecting airflow
Connection Inspection (Every 6 months):[48][49]
- Check for loose wiring at DC and AC terminals
- Look for signs of corrosion, discoloration, or burning at connection points
- Tighten any loose connections after shutting down the system
- Inspect for damaged insulation or exposed conductors
Performance Monitoring (Ongoing):[47][48]
- Review monitoring system data regularly for production anomalies
- Track efficiency trends to identify gradual degradation
- Monitor operating temperature to detect cooling issues
- Document any error codes or fault messages
Firmware Updates (As released):[48][47]
- Install manufacturer firmware updates promptly
- Updates often improve efficiency, fix bugs, and enhance monitoring
- Follow manufacturer procedures carefully during updates
Common Issues and Solutions
- Inspect solar panels for shading, dirt, or physical damage
- Clean panels to remove dust, bird droppings, or snow
- Check for module-level issues using monitoring system
- Verify DC input voltage matches specifications
- Reset inverter to clear temporary faults
Inverter Not Operating:[50][46]
- Confirm AC breaker and solar disconnect are in “on” position
- Check for error codes on inverter display
- Verify DC voltage is within inverter’s operating range
- Inspect for tripped ground fault protection
- Reset inverter after 5-minute power-down period
- Inspect for loose electrical connections causing intermittent faults
- Check for system overloads exceeding inverter capacity
- Verify ground connections are secure and within resistance specifications
- Monitor for grid voltage or frequency fluctuations triggering anti-islanding
- Contact certified technician if faults persist after basic troubleshooting
Overheating Issues:[48][51][47]
- Verify adequate ventilation around inverter
- Clean cooling fans and air vents thoroughly
- Check for proper inverter sizing relative to load
- Ensure ambient temperature is within specifications
- Consider relocating inverter to cooler location if chronic overheating occurs
Professional inspection by certified solar technicians is recommended annually or whenever persistent issues arise that basic troubleshooting cannot resolve.[46][47]
Conclusion
Solar inverters represent sophisticated power electronic systems that serve as the vital link between solar panels and usable electricity. Understanding their operation—from DC-to-AC conversion principles and MPPT optimization to safety features like anti-islanding protection—enables informed decisions about solar system design, component selection, and maintenance strategies.
Whether choosing between string inverters for simple installations, microinverters for complex roofs with shading issues, or hybrid inverters for energy storage integration, matching the inverter type to specific site conditions and energy goals ensures optimal system performance. Proper sizing, professional installation, and regular maintenance maximize efficiency, safety, and return on investment throughout the system’s 25-year operational life.
As solar technology continues advancing, inverters are becoming increasingly intelligent, with features like machine learning-enhanced MPPT, cloud-based monitoring, grid support functions, and seamless integration with home energy management systems. These innovations position solar inverters not merely as conversion devices but as smart energy hubs central to the renewable energy transition.
- https://techfinepv.com/solar-inverters-work-application-and-type/
- https://www.ecoflow.com/za/blog/the-complete-guide-to-solar-inverters
- https://en.wikipedia.org/wiki/Solar_inverter
- https://fallonsolutions.com.au/solar/information/what-is-a-solar-inverter-and-how-does-it-work/
- https://www.frittssolar.com.au/solar-system-inverters-types-and-how-does-they-work/
- https://www.one-inverter.com/the-ultimate-guide-to-pure-sine-wave-solar-inverters/
- https://www.circuits-diy.com/pv-solar-inverter-circuit-diagram/
- https://solarsasa.com/solar-power-inverter-circuit-diagram-guide/
- https://solarsasa.com/solar-inverter-block-diagram-explained-easily/
- https://www.greenlancer.com/post/maximum-power-point-tracking-mppt
- https://suntegritysolar.com/uncategorized/solar-anti-islanding-protection-a-comprehensive-guide/
- https://www.aforenergy.com/what-is-anti-islanding-in-solar-inverters/
- https://en.growatt.com/media/news/pros-cons:-solar-microinverter-vs-inverter
- https://palmetto.com/solar/solar-inverter-guide-types-benefits-cost-how-solar-inverters-work
- https://www.solar.com/learn/micro-inverter-string-inverter-comparison-solar-equipment/
- https://ornatesolar.com/blog/are-microinverters-better-than-string-inverters-for-my-solar-system
- https://bearworx.in/microinverters-vs-string-inverters-which-saves-more-money-in-2025/
- https://www.scupower.com/what-is-the-difference-between-solar-inverter-and-hybrid-inverter/
- https://enertechups.com/blog/why-hybrid-solar-inverter-system-is-smart-choice-for-greener-future/
- https://richsolar.com/blogs/news/what-is-a-hybrid-inverter
- https://www.aforenergy.com/grid-tied-vs-off-grid-solar-inverter-pros-and-cons/
- https://luxpowertek.com/blog/grid-tied-vs-off-grid-solar-inverter/
- https://palmetto.com/solar/what-is-solar-islanding-and-anti-islanding
- https://ratedpower.com/glossary/maximum-power-point-tracking/
- https://www.veichi.com/knowledge/what-is-mppt.html
- https://en.wikipedia.org/wiki/Maximum_power_point_tracking
- https://www.infinitypv.com/roll-to-roll-academy/mppt-tracker-for-characterization-of-solar-cells
- https://www.sciencedirect.com/science/article/abs/pii/S1364032124009341
- https://www.solisinverters.com/global/inverter.html
- https://www.everexceed.com/blog/classification-of-inverter-based-of-output-waveforms_b357
- https://www.tycorun.com/blogs/news/inverter-waveform
- https://www.busbyr.com/industry-news/What-are-the-two-types-of-solar-inverters-according-to-different-output-waveforms.html
- https://www.prostarsolar.net/article/why-choose-a-perfect-sine-wave-inverter-for-your-solar-power-system.html
- https://www.aforenergy.com/solar-inverter-efficiency-what-you-need-to-know/
- https://www.solarfeeds.com/mag/mastering-solar-inverter-datasheets-a-comprehensive-guide/
- https://www.solar.com/learn/solar-inverter/
- https://www.solarsquare.in/blog/5kw-solar-inverter/
- https://solectria.com/blog/anti-islanding-protection-with-grid-tied-pv-inverters/
- https://pixonenergy.com/anti-islanding-in-solar-inverters-ensuring-safety-efficiency/
- https://www.aforenergy.com/how-to-install-solar-inverters-a-complete-and-useful-guide-for-you/
- https://solairefuture.com/blogs/solar_inverter_sizing
- https://www.solarchoice.net.au/blog/optimizing-solar-panel-system-efficiency-through-inverter-sizing/
- https://aurorasolar.com/blog/choosing-the-right-size-inverter-for-your-solar-design-a-primer-on-inverter-clipping/
- https://www.solaxpower.com/blogs/how-to-install-a-solar-power-inverter-a-stepbystep-installation-guide.html
- https://shop.waaree.com/blog/where-to-put-solar-inverter-optimal-placement-guide
- https://www.greenlancer.com/post/solar-inverter-problems-and-solutions
- https://www.aforenergy.com/ultimate-guide-to-solar-inverter-troubleshooting-expert-solutions-for-common-issues/
- https://en.growatt.com/media/blogs/solar-inverter-maintenance-checklist:-7-tips-to-extend-inverters-lifespan
- https://enertechups.com/blog/solar-inverter-maintenance-tips/
- https://intello.co.in/what-are-the-common-issues-in-a-solar-inverter/
- https://evolveenergygroup.com/top-7-signs-your-solar-inverter-needs-immediate-maintenance/
- https://www.ijnrd.org/papers/IJNRD2206025.pdf
- https://www.victronenergy.com/media/pg/Inverter_RS_Smart/en/technical-specifications.html
- https://www.solarinvertermanufacturers.com/inverter-circuit/
- https://www.cbip.org/MIR/1 DATA/Model 2.pdf
- https://www.elprocus.com/what-is-a-solar-inverter-and-how-it-works/
- https://www.mouser.com/pdfdocs/solar-inverter-block-diagram.pdf?elqTrackId=07747eb2dddc408cb2067ee25dbe0c89&elqaid=3979&elqat=2
- https://www.youtube.com/watch?v=Jt2x7MdnD38
- https://www.chintglobal.com/in/en/about-us/news-center/blog/grid-tied-solar-vs-off-grid-solar.html
- https://www.solarreviews.com/blog/grid-tied-off-grid-and-hybrid-solar-systems
- https://www.youtube.com/watch?v=pajmtcTTCJg
- https://www.greenedgeenergy.co.in/hybrid-solar-inverter.html
- https://waaree.com/blog/on-grid-vs-off-grid-solar-inverters-which-one-is-right-for-you/
- https://invergypowersupply.com
- https://www.solar-electric.com/learning-center/mppt-solar-charge-controllers.html/
- https://apserc.nic.in/pdf/Solar_roof_top.pdf
- https://www.su-kam.com/easy-step-by-step-guide-to-installing-the-best-solar-inverter-in-india/
- https://blog.windurance.com/how-does-anti-islanding-work
- https://igreenenergy.com.au/blog/solar-inverter-installation-everything-you-need-to-know
- https://www.reddit.com/r/SolarDIY/comments/1aw3evv/micro_inverters_vs_string_inverter_why_are_all/
- https://www.genusinnovation.com/blogs/mistakes-to-avoid-in-on-grid-solar-inverter-installation
- https://www.solarreviews.com/blog/pros-and-cons-of-string-inverter-vs-microinverter
- https://www.energysage.com/solar/string-inverters-power-optimizers-microinverters-compared/
- https://www.solarfeeds.com/protection/anti-island-protectionens/
- https://www.self2solar.com/blogs/tutorial/inverter-size-calculator
- https://www.leonics.com/support/article2_12j/articles2_12j_en.php
- https://www.loomsolar.com/blogs/collections/how-to-calculate-solar-panel-battery-and-inverter
- https://solarthon.en.made-in-china.com/product/qxTpsLjuYRrv/China-Solar-Inverter-with-Sine-Wave-Output-Waveform.html
- https://www.ti.com/lit/an/slaa602a/slaa602a.pdf
- https://www.greentechrenewables.com/article/solar-inverter-string-design-calculations
